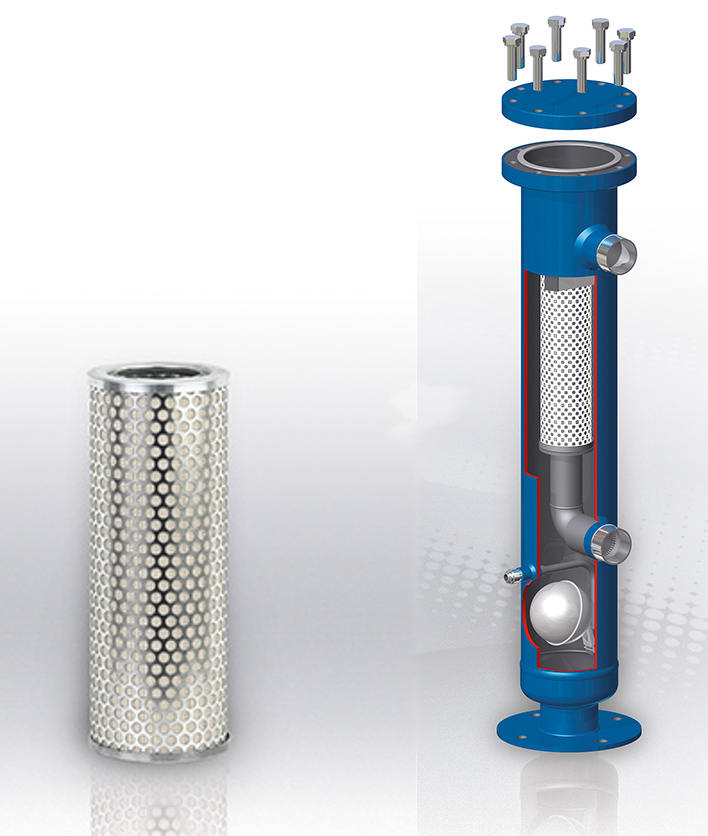

Replacement coalescing cartridges for BOS..-Oil separators
The new cartridge is supplied with all the seals required, including for mounting the flange plate.
Please note that BOS oil separators also separate solid particles from the oil/gas flow on the discharge side. However, they should not be used specifically for cleaning a refrigeration system. A steadily increasing pressure drop indicates a rising saturation of the element with dirt.
From a pressure drop > 0.8 bar, we recommend replacing the coalescence element!
We also recommend replacing the original filter cartridge after an initial run time of 48 hours.
We recommend replacing the filter cartridge in the event of a compressor burn-out.
Please note that BOS oil separators also separate solid particles from the oil/gas flow on the discharge side. However, they should not be used specifically for cleaning a refrigeration system. A steadily increasing pressure drop indicates a rising saturation of the element with dirt.
From a pressure drop > 0.8 bar, we recommend replacing the coalescence element!
We also recommend replacing the original filter cartridge after an initial run time of 48 hours.
We recommend replacing the filter cartridge in the event of a compressor burn-out.
For detailed information,
please refer to the following documents:
